Gel Seal Closure for 1/2"jumper to antenna
Telsto Gel seal closure (Weather shields) is a weatherproofing system for sealing coaxial cable jumper-to-feeder, jumper-to-antenna and grounding kit connectors exposed to the outside environment. The housing contains an innovative gel material and provides an efficient moisture block effectively water-proofing the connectors. The ease of installation and the long term protection makes it a reliable and cost effective sealing solution for outside plant cables and connectors.
*IP rating 68
*Certificated materials: housing—PC+ABS; gel--TBE
*Wide temperature range: -40°C/+ 60°C
*Quick and easy to install
*No tape, mastics or tools required for installation and removal
*Easily removable and re-usable

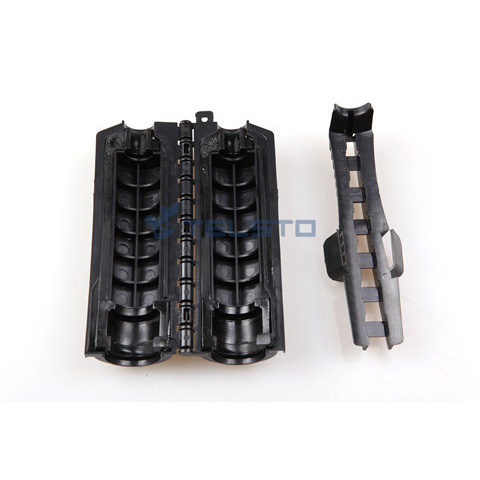

Gel Seal Closure
· Optimized Gel seal closure for Antenna Coaxial Connectors(7/16 DIN or 4.3-10)-Cable(1/2 or 1/2S)
1. Optimized PC+ POM with reliable mechnical performance
2. Hinge structure offer durability
3. Elliptical port design provide better sealing & protection
4. Prominent plateform ensure 100% sealing
5. Connectors' part totally warpped around by elastomers
Black or Gray color available
With or Without logo
PC (Polycarbonates) is engineering palstic which propertities is much better than PP or ABS, which include; Durability, hardness, abrasion resistant,Highly refractory ability and flame retardant.
Specifications
| Gel Seal Closure | |
| Model | TEL-GSC-1/2-J-A |
| Function | Gel Seal Closure for 1/2"jumper to antenna |
| Material | PC+SEBS |
| Size | L150mm,W60mm,H42mm |
| Input | 1/2"jumper(13-17mm) |
| Output | Antenna bolt |
| Net Weight | 120g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultraviolet test |
| Ice-snow resistance | up to 100mm,no water leakage ,no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-GSC-1/2-J-A
Product Line:Weatherproof,Tape & Chemicals
Product Type:Gel Seal Closure
Application:waterproof
OEM:accepted
