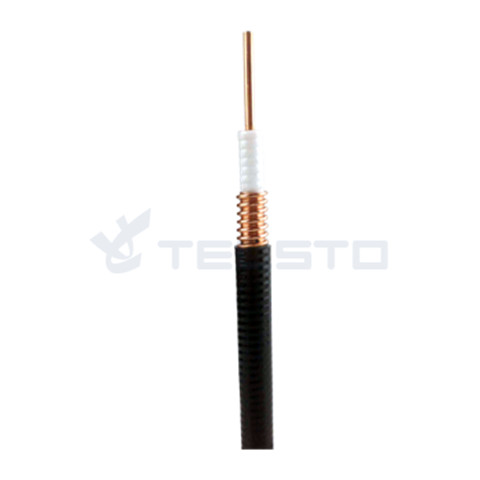

Ultra Low loss flexible 50 ohms RF 5012S coaxial cable

construction
inner conductor	material	conpper clad aluminum wire
	dia.	3.55±0.04 mm
insulation	material	physically foamed PE
	dia.	9.20±0.20 mm
outer conductor	material	helically corrugated copper
	diameter	12.00±0.20 mm
jacket	material	PVC or fire retardant PE
	diameter	13.60±0.20 mm
mechanical properties
bending radius	single repeated moving	25 mm 30 mm 200 mm
pulling strength		800 N
crush resistance		1.9 kg/mm
recommended temperature	PE jacket	store	-70±85°C
		installation	-40±60°C
		operation	-55±85°C
	fire retardant PE jacket	store	-30±80°C
		installation	-25±60°C
		operation	-30±80°C
electrical properties
impedance		50±2 Ω
capacitance		82 pF/m
inductance		0.205 uH/m
propagation velocity		81
DC breakdown voltage		2.5
insulation resistance		>5000
peak power		15.6
screening attenuation		>120
cut-off frequency		10.2
attenuation and average power
frequency,MHz	power rate@20°C,kW	nom.attenuation@20°C,dB/100m
10	10.1	1.04
100	3.08	3.41
450	1.38	7.59
690	1.158	9.58
800	1.01	10.40
900	0.943	11.20
1000	0.889	11.80
1800	0.634	16.60
2000	0.597	17.60
2200	0.566	18.61
2400	0.539	19.59
2500	0.529	20.07
2600	0.518	20.55
2700	0.507	21.02
3000	0.469	22.40
maximum attenuation value may be 105% of the nominal attenuaiton value.
vswr
820-960MHz			≤1.15
1700-2200MHz			≤1.15
2300-2400MHz			≤1.15
standards
2011/65/EU		compliant
IEC61196.1-2005		compliant
