Product Description

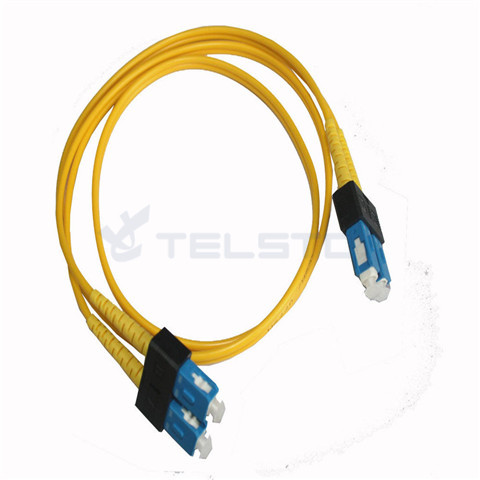

Fiber optic patch cord is available in both singlemode and multimode versions
Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end
These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Applications:
Telecommunications
CATV, LAN, MAN, WAN, test and measurement
Military industry
Medical
| Parameter | |||
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50dB | ≥60dB | ≥35dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -20℃~+70℃ | ||
| Storage Temperature | -40℃~+85℃ | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Specification | |||
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,G657A2,G657B2,G657B3 | ||
| Multimode: (4)50/125-OM2 (5)62.5/125-OM1 (6)50/125-OM3 (7)50/125-OM4 | |||
| Fiber brand | YOFC, Corning, OFS... | ||
| Connector type | SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN | ||
| Cord type | Simplex, Duplex, 4cores, 6cores, 12cores, 24cores... | ||
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... | ||
| Cable jacket | PVC, LSZH, OFNR, OFNP | ||
| Length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m | ||
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:SC/APCfiber optic patch cord
Connector type:SC, LC, FC, ST, E2000, MU, MTRJ...
Polishing type:PC, UPC, APC
Inserion Loss:<0.25db
Return Loss:>55db
Cable diameter:0.9, 2.0, 3.0mm
Length:Customized
Cable color:Yellow, red, orange, aqua, white...
Cable material:PVC, LSZH, OFNR, OFNP, Hytrel
