Product Description
Model: TEL-4310M.12-RFC
Description:

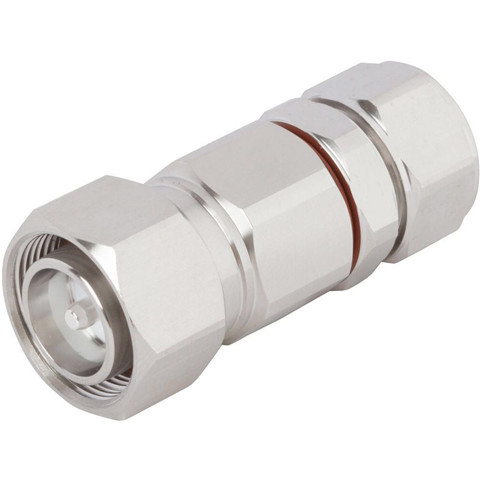

4.3-10 Male connector for 1/2’’ flexible RF cable
Specification
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | ≥2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤1.0 mΩ |
| Insertion Loss | ≤0.1dB@3GHz |
| VSWR | ≤[email protected] |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-155 dBc(2×20W) |
| Waterproof | IP67 |
1.We focus on RF Connector & Cable Assembly & Antenna.
2.We have a vigorous and creative R&D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connector production, and dedicate ourselves to achieving a leading position in connector innovation and production.
3.Our custom RF cable assemblies are built-in and shipped worldwide
4.RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
5.If you require a special RF Connector or RF Cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
Quick Details
Place of Origin: shanghai, China (Mainland), Shenzhen
Brand Name:Telsto
Model Number:TEL-4310M.12-RFC
Application:RF
Gender:Male
Conductor Material:Copper
Polarity:Standard
