Rf coaxial N type male plug clamp connector for 1/2″ flex foam feeder cable

Product Description

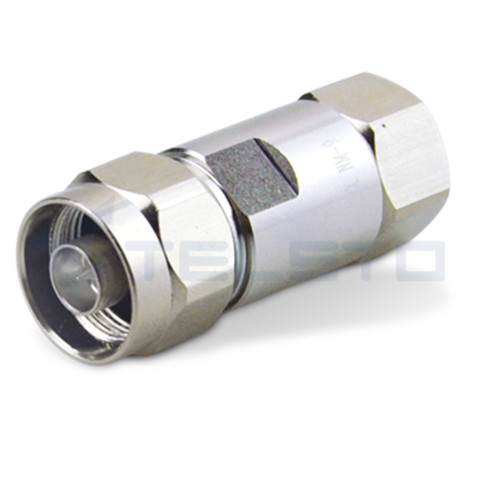

N Male connector for 1/2’’ flexible RF cable

Rf coaxial N type male clamp connector for 1/2" flex foam feeder cable
Model No.TEL-NM.12-RFC
InterfaceIEC 60169-16
Electrical
Characteristic Impedance50ohm
Frequency RangeDC-6GHz
VSWR≤1.10@DC-3000MHz
Insertion Losss≤0.24dB(6GHz)
3rd Order IM (PIM3)≤ -155dBc@2×20W
Working Vlotage1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage≥2500V RMS,50Hz,at sea level
Dielectric Resistance≥5000MΩ
Contact ResistanceCenter Contact ≤1mΩOuter Contact ≤0.25 mΩ
Mating—
Mechanical
DurabilityMating cycles  ≥500
Material and Plating
Parts NameMaterialPlating
BodyBrassTri-alloy
InsulatorPTFE—
Inner ConductorPhosphor BronzeAg
Coupling NutBrassNi
GasketSilicone Rubber—
Cable ClampBrassNi
Press RingBrassAg
Environmental
Operating Temperature-40℃- +85  ℃
Weatherproof RateIP67
RoHs Compliant Yes

Quick Details

Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-NM.12-RFC
Type:N
Application:RF
Gender:Male
Material:Brass and Teflon
Plating:Tri-alloy and sliver
Product name:N male connector
Connector type:N Connector
VSWR:≤1.10@DC-3000MHz
Impedance:50ohm
Frequency Range:DC-6GHz
Weatherproof Rate:IP67
HS code:85369090

Type N is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50ohm and 75ohm. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11GHZ.
