Product Description
Telsto RF Connector has an operational frequency range of DC-6 GHz, offers excellent VSWR performance and Low Passive Intermodulation. This makes it ideally suited for use in cellular basestations, distributed antenna systems (DAS) and small cell applications.

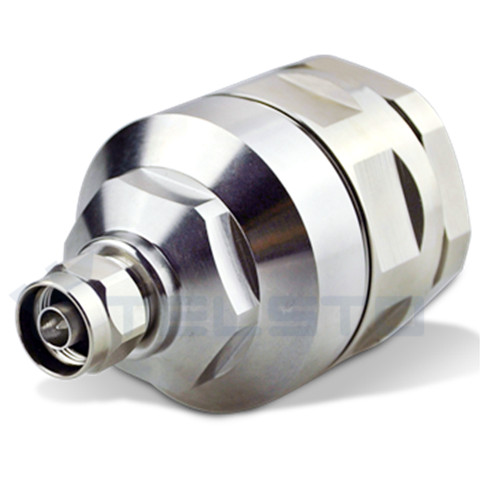

RF Connector N male/ plug connector for 1-5/8 coaxial cable
Quick Details
Place of Origin:shanghai, China (Mainland)
Model Number:TEL-NM.158.RFC
Type:N
Application:RF
Gender:Male
Series N are threaded connector,medium and small power RF connector.there are 50ohm and 75 ohm about the Characteristic impedance, they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and Semiflexible and semirigid cable.
Technical Characteristics
| Major Technical Characteristics |
| Temperature Range | -55 degree to +155 dregree(PE Cable-40~+85 degree) |
| Vibration | 100m/S2 (10 to 500 Hz) |
| Impedance | 50 ohm |
| Frequency Range | DC-6GHZ |
| Working Voltage | 1000V r.m.s at sea level |
| Withstanding Voltage | 2500V r.m.s at sea level |
| Center Contact Resistance | ≤1Mohm |
| Outer Contact Resistance | ≤1Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.56N |
| Insertion Loss | ≤0.24dB/6GHz |
| Voltage Standing Wave Ratio : |
| Straight | ≤1.15/6GHz |
| Right Angle | ≤1.25/6GHz |
| Coupling Nut Retention force | 450N |
| Durability (Mating) | ≤500(cycles) |
| Materials |
| Shell/Body | Brass..................NEXCOTE |
| Insulator | Teflon..................Natural |
| Gasket | Silicone.................Red |
| Retainer Ring | SUS 304..................Natural |
| Contact Pin | Brass......................Gold |
| Ferrule | Copper......................NEXCOT |
| Suitable Cable |
RG8, RG58, RG213, RG316, LMR200, LMR300, LMR400 ( More Option, please contact us)
| Product | Description | Part No. | | 7/16 DIN Type | DIN Female connector for 1/2’’ flexible RF cable | TEL-DINF.12-RFC | | DIN Female connector for 1/2’’ Super flexible RF cable | TEL-DINF.12S-RFC | | DIN Female connector for 1-1/4’’ flexible RF cable | TEL-DINF.114-RFC | | DIN Female connector for 1-5/8’’ flexible RF cable | TEL-DINF.158-RFC | | DIN Female Right Angle connector for 1/2’’ flexible RF cable | TEL-DINFA.12-RFC | | DIN Female Right Angle connector for 1/2’’ Super flexible RF cable | TEL-DINFA.12S-RFC | | DIN Male connector for 1/2’’ flexible RF cable | TEL-DINM.12-RFC | | DIN Male connector for 1/2’’ Super flexible RF cable | TEL-DINM.12S-RFC | | DIN Female connector for 7/8'' coaxial RF cable | TEL-DINF.78-RFC | | DIN Male connector for 7/8' coaxial RF cable | TEL-DINM.78-RFC | | DIN Male connector for 1-1/4’’ flexible RF cable | TEL-DINM.114-RFC | | N Type | N Female connector for 1/2’’ flexible RF cable | TEL-NF.12-RFC | | N Female connector for 1/2’’ Super flexible RF cable | TEL-NF.12S-RFC | | N Female Angle connector for 1/2’’ flexible RF cable | TEL-NFA.12-RFC | | N Female Angle connector for 1/2’’ Super flexible RF cable | TEL-NFA.12S-RFC | | N Male connector for 1/2’’ flexible RF cable | TEL-NM.12-RFC | | N Male connector for 1/2’’ Super flexible RF cable | TEL-NM.12S-RFC | | N Male Angle connector for 1/2’’ flexible RF cable | TEL-NMA.12-RFC | | N Male Angle connector for 1/2’’ Super flexible RF cable | TEL-NMA.12S-RFC | | 4.3-10 Type | 4.3-10 Female connector for 1/2’’ flexible RF cable | TEL-4310F.12-RFC | | 4.3-10 Female connector for 7/8’’ flexible RF cable | TEL-4310F.78-RFC | | 4.3-10 Female Right Angle connector for 1/2’’ flexible RF cable | TEL-4310FA.12-RFC | | 4.3-10 Female Right Angle connector for 1/2’’ Super flexible RF cable | TEL-4310FA.12S-RFC | | 4.3-10 Male connector for 1/2’’ flexible RF cable | TEL-4310M.12-RFC | | 4.3-10 Male connector for 7/8’’ flexible RF cable | TEL-4310M.78-RFC | | 4.3-10 Male Right Angle connector for 1/2’’ flexible RF cable | TEL-4310MA.12-RFC | | 4.3-10 Male Right Angle connector for 1/2’’ Super flexible RF cable | TEL-4310MA.12S-RFC |
|
