DETAILS

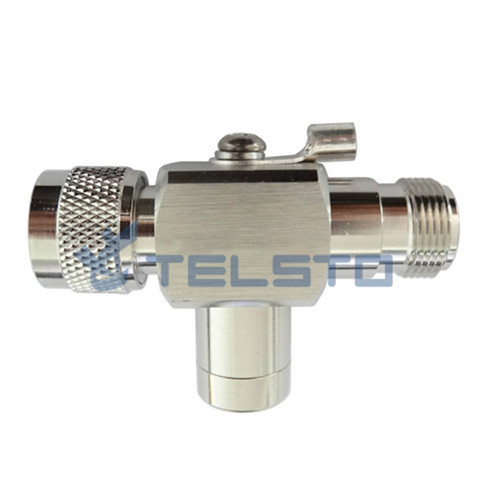

Male to Female EMP surge protector
Our Male to Female EMP surge protector provide excellent lightning protection and outstanding RF performance. All designs have low return loss, low insertion loss and low intermodulation. We offers λ/4 wave shorting stubs and gas discharge tube type for your selection.
Interface(Male to Female EMP surge protector)
| According to | IEC60169-16 |
Electrical(Male to Female EMP surge protector)
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | 2.4-6GHz |
| 3 | VSWR | 1.15 |
| 4 | Insertion loss,typical | 0.2db |
| 5 | Contact Resistance | Outer contact≤0.2mΩ ;Center Contact≤0.4mΩ |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
| Description | Material | Plating | |
| 1 | Body | Brass | Ni |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor bronze | Ag |
| 4 | Java standard library | Stainless steel | – |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
Surge arrestors are designed to provide excellent lightning protection and outstanding RF performances. Telsto Gas tube lightening surge arresters can be integrated directly into the cabling system and provide reliable surge protection in case of over voltages. Our surge arrestors provide excellent lightning protection and outstanding RF performance. All designs are low return loss, low insertion loss and low intermodulation.
*High quality materials
*Excellent RF performance
*Total weatherproof
*Available with type N or 7/16 DIN type
*Waterproof
*Environment resistance ensures long life and consistent performance
| Product | Description | Part No. |
Surge Arrester | DIN 7/16 Male to Female Gas Tube | TEL-SA-DINM.F |
| N Female to N Female | TEL-SA-NF.F | |
| N Male to N Female | TEL-SA-NM.F | |
| SMA Female to Female | TEL-SA-SMAF.F | |
| SMA Female to Male | TEL-SA-SMAF.M | |
| SMA Male to Male | TEL-SA-SMAM.M |
