Specification
1. RF coaxial connector
1.1 Connector Materials and Plating | |
Inner conductor: | Bronze, plated with silver,plating thickness ≥0.003mm |
Outer conductor: | Brass, plated with ternary alloy,plating thickness≥0.002mm |
Fastener: Brass: | Insulation |
dielectric: | PTFE |
1.2 Electrical & Mechanic Feature | |
Characteristics impedance: | 50Ω |
Frequency range: | DC-3GHz |
VSWR: | ≤1.15 (DC-3GHz) |
Dielectric strength: | ≥2500V |
Contact resistance: | inner conductor≤1.0mΩ, Outer conductor≤0.4mΩ |
Insulator resistance: | ≥5000MΩ (500V DC) |
VSWR: | ≤1.15 (DC-3GHz) |
PIM(IM3): | ≤-155dBc@2x43dBm |
Connector durability: | ≥500 cycles |
2. RF coaxial cable: 1/2” Super Flexible RF Cable
2.1 Materials | |
Inner conductor: | aluminum wire covered with copper (φ3.60mm) |
Insulation dielectric: | polyethylene foam (φ8.90mm) |
Outer conductor: | corrugated copper tube (φ12.20mm) |
Cable jacket: | PE (φ13.60mm) |
2.2 Feature | |
Characteristics impedance: | 50Ω |
Standard capacitor: | 80pF/m |
Transmission rate: | 83% |
Min. single bending radius: | 50mm |
Tensile strength: | 700N |
Insulation resistance: | ≥5000MΩ |
Shielding attenuation: | ≥120dB |
VSWR: | ≤1.15 (0.01-3GHz) |

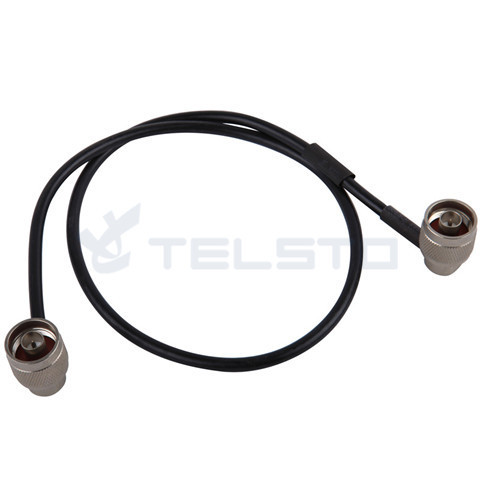

3. Jumper cable
3.1 Cable Component Size | |
Total length of cable assemblies: | 1000mm±10， 2000mm±20， 3000mm±25，5000mm±40 |
3.2 Electrical feature | |
Frequency Band: | 800-2700MHz |
Characteristics Impedance: | 50Ω±2 |
Operating Voltage: | 1500V |
VSWR: | ≤1.11 (0.8-2.2GHz), ≤1.18 (2.2-2.7GHz) |
Insulation voltage: | ≥2500V |
Insulation resistance: | ≥5000MΩ (500V DC) |
PIM(IM3): | ≤-155dBc@2x20W |
3.3 Insertion Loss:
Frequency | 1m | 2m | 3m | 5m |
890-960MHz | ≤0.15dB | ≤0.26dB | ≤0.36dB | ≤0.54dB |
1710-1880MHz | ≤0.20dB | ≤0.36dB | ≤0.52dB | ≤0.80dB |
1920-2200MHz | ≤0.26dB | ≤0.42dB | ≤0.58dB | ≤0.92dB |
2500-2690MHz | ≤0.30dB | ≤0.50dB | ≤0.70dB | ≤1.02dB |
5800-5900MHz | ≤0.32dB | ≤0.64dB | ≤0.96dB | ≤1.6dB |
Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition I
Moisture Resistance Test Method: MIL-STD-202F, Method 106F
Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1
3.3 Environment feature | |
Waterproof: | IP68 |
Operation temperature range: | -40℃ to +85℃ |
Storage temperature range: | -70℃ to +85℃ |
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Type:Coaxial
Frequency range:DC-3GHz
VSWR:≤1.15
PIM(IM3):≤-155dBc@2x43dBm
Dielectric strength:≥2500 V
Connector durability:≥500 cycles
Propagation velocity:83%
Min. single bending radius:50mm
Tensile strength:700N
