Product Description

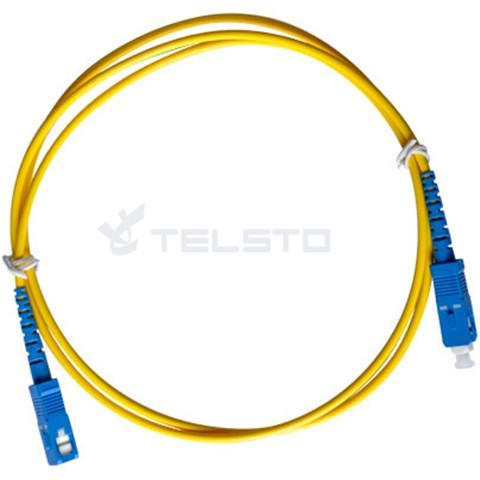

Fiber optic patch cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. For the fiber patch cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center. We provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables here. For most of them, the SC, ST, FC, LC, MU, MTRJ, E2000, APC/UPC connectors are all available, even we supply MPO/MTP fiber cables.
Our PVC/LSZH Fiber Patch Cables are standard fiber optic cables terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on both ends, such as LC-LC, LC-SC, LC-ST, SC-ST, SC-SC, ST-ST etc. These fiber patch cables are used for fiber link connection between equipment during fiber cabling. There are Singlemode and Multimode versions: Singlemode for long distance transmission, while multimode for short distance transmission. Telsto provides both Singlemode and Multimode patch cables (including OM1, OM2, 10G OM3 and 10G OM4), available in Duplex and Simplex as well as Plenum-rated. The cables can be Customized in optional lengths and are 100% optically tested for maximum performance before shipping worldwide.
Plenum-rated fiber optic cables - The fiber patch cables feature OFNP (Plenum rated) jackets whith is ideal for installation in air plenums, ducts, walls, conduit, ceilings, etc. where CMP fire rating is required. Our Plenum(OFNP) Fiber Cables include SC, FC, LC, ST, MU, MTRJ, E2000, MTP etc, both single mode and multimode plenum rated fiber optic cable assemblies. Custom lengths, connector combinations and polishes are available. Our each fiber patch cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
Armored fiber patch cable use rugged shell with aluminum armor and kevlar inside the jacket, and it is 10 times stronger than regular fiber patch cable. This will help make the armored fiber patch cord resistant of high tension and pressure. The armored patch cable has a 40% higher rated range of operating temperature, so it provides stable performance over a wide temperature range. This type patch cable is specifically ideal for light to medium duty indoor/outdoor applications. Telsto supply armored fiber optic patch cable, including 10G OM4/ OM3, 9/125, 50/125, 62.5/125 fiber types. The armored fiber optic patch cords can be with SC, ST, FC, LC, MU, SC/APC, ST/APC, FC/APC, LC/APC, etc. types of terminations.
Telsto supply a lot of other fiber patch cables including fiber loopback cables, plastic optical fiber patch cables, FTTH patch cables, polarization maintaining patch cables, mode conditioning patch cables, etc. These patch cables can be used for most applications, and they are available in 62.5 multimode, 50/125 multimode, 9/125 Single mode and Laser optimized OM3, OM4 fiber. We offer the ability to customize cables for your own specific needs. And you can buy the patch cables with high quality at a value price from us.
Applications
Transmission with low loss, high transmission rate, high precision
Laser surgery
Photodynamic Therapy
Spectral measurement
Laser bonding
Illumination
Sensor
Specifications
| The numerical aperture of the Quartz fiber: | 0.22-0.37 | |||||||
| Fiber Diameter(mm) | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.65 | 0.8 | |
| Minimum Bending Radius | 10D (D:optical fiber core diameter) | |||||||
| Fiber Cor(coating layer): | 1:1.05 or 1:1.4 | |||||||
| Numerical Aperture | 0.21-0.37 | |||||||
| Transmission(%/m0) | Transmission(0.20-0.4um) | 85-98 | ||||||
| Visible Light(0.4-0.7um) | 97-99 | |||||||
| Near-Infrared(0.76-1.6um) | 90-99 | |||||||
| Heliun-Neon(0.6328um) | 99 | |||||||
| YAG(1.06um) | 98 | |||||||
| Argon(0.5145um) | 98 | |||||||
| Transmission Power | >130w(fibre core0.5 1.06um) | |||||||
| connoctor type | SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA.... |
| Cables | PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored |
| Color | yellow,gray,sky bule ,orange,white,black... |
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Cable:PVC,LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored
lenth:0.5m ,1m,1.5M,2m,3m,5m,10m up to 100m
color:yellow,gray,sky bule ,orange,white,black
OEM:Support
ODM:support
Customized:Support
Warranty:Support
Certification:RoHS
Application:FTTH FTTB FTTX Network
