Product Description

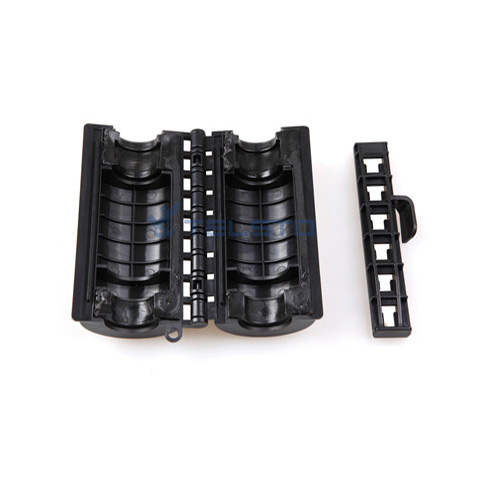

Gel seal closure, is a new kind of weatherproofing kit. It is designed to quickly seal the antenna connectors and feeder connectors in cellular sites. This closure contains an innovative gel material and provides an efficient block against moisture & salt mist.
Gel seal closures have pass strict tests from labs and achieve good feedback from long-term practical application. The ease of installation and reusable feature makes them a cost-effective solution.
Model: TEL-GSC-7/8’’Feeder-Antenna
Description: Gel Seal Closure products provide a quick and low level installation skill set method to weatherproof “jumper to antenna” and “jumper to feeder” connections.
Quick to install. The installation of Telsto Gel Seal Closures can be accomplished in seconds.
There is virtually no training required for installers, and a good seal providing sound weatherproofing is accomplished every time.
Telsto Gel Seal Closures are easy to remove, and in most cases reusable.
Telsto Gel Seal Closures are a wraparound design and require no disconnection of a cable connection.
Data Sheet
| Gel Seal Closure | |
| Model | TEL-GSC-7/8-A |
| Function | Gel Seal Closure for 7/8’’feeder to antenna |
| Material | PC+SEBS |
| Size | L124mm,W77mm,H49mm |
| Input | 7/8"feeder (27-29mm) |
| Output | Antenna bolt |
| Net Weight | 200g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultraviolet test |
| Ice-snow resistance | up to 100mm,no water leakage ,no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number: TEL-GSC-7/8-A
