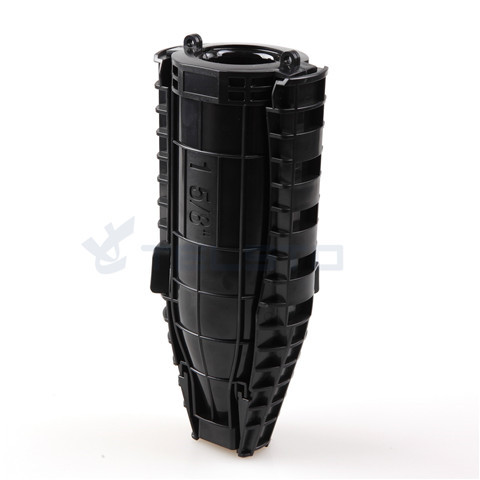

Gel Seal Closure For Coax In-Line Connection Of 1/2" To 1-5/8"
Gel seal closure is a plastic weatherproofing enclosure which is designed to quickly seal the coax connector between 1/2" jumper cable and 1-5/8" feeder cable.
It is usually used on wireless cell tower cabling system.
It is not a simple plastic enclosure. The innovative built-in soft gel make it IP68 waterproof rate, and ensure a perfect sealing for outdoor coax connectors.
Item No.: TEL-GEL-1/2J-1-5/8F
Dimension: 364 x 105 x 77 mm
Materials: PC+ABS, built-in soft silicone gel
Function: weatherproofing kit
Application: Cellular cell tower and site infrastructures.
Inlet: 1/2" coax jumper cable (13-17mm)
Outlet: 1-5/8" coax feeder cable (49.5-52mm)
Interior connector types: 716-DIN type, N type, 4.3-10 type.
Specs:
-- Quick install, just take seconds.
-- Easy install, no tape, no mastic and no tool needed.
-- Simple install, insure an uniform and good connector-sealing jobs.
-- Removable and reusable.
-- ROHS compliant
| Gel Seal Closure | |
| Model | TEL-GEL-1/2J-1-5/8F |
| Function | Gel Seal Closure for 1/2"jumper to 1-5/8"feeder |
| Material | PC+SEBS |
| Size | 364 x 105 x 77 mm |
| Input | 1/2"jumper(13-17mm) |
| Output | 1-5/8"feeder(35-40mm) |
| Net Weight | 300g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultraviolet test |
| Ice-snow resistance | up to 100mm,no water leakage, no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
