Product Description
TYPE 7/16(L29) is one kind of thread coupling RF coaxial connector. Characteristic impedance is 50ohm. The characteristic of connector is in big power, low VSWR, less attenuation, low inter-modulation, excellent nature of airtight.
They are used in connection with feeder cables in broadcast, Television,ground launch system, monitoring of radar, microwave communication fields etc. Our company manufacturer produces many kinds of jumper lines, which can reduce your cost on cable.

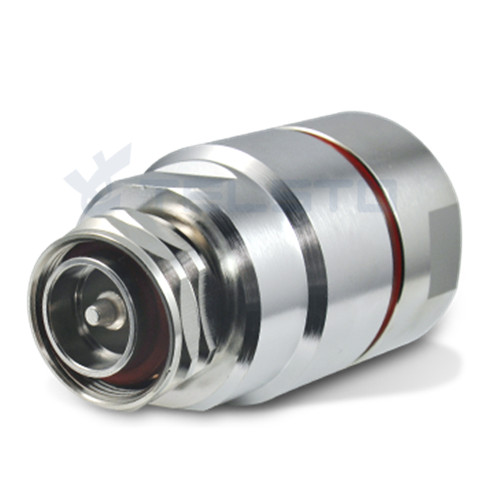

| 7/16 Din Male Connector For 1-1/4" Foam Feeder Cable | ||
| Model No. | TEL-DINM.114-RFC | |
| Interface | IEC 60169-4;DIN-47223;CECC-22190 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-7.5GHz | |
| VSWR | ≤1.20@DC-3000MHz | |
| 3rd Order IM (PIM3) | ≤ -155dBc@2×20W | |
| Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥10000MΩ | |
| Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 mΩ |
| Mating | M29*1.5 threaded coupling | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal(CuZnSn) |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Cable Clamp | Brass | Ni |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | -45 ℃ to 85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | 1-1/4'' feeder cable | |
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-DINF.114-RFC
Type:7/16
Application:RF
Gender:Male
Material:Brass and Teflon
Contact Plating:Tri-Metal(CuZnSn) and Silver(Ag)
Connector type:7/16 DIN connector jack
Product name:7/16 jack Connector for 1-1/4" cable
Frequency range:DC-6GHz
Impedance:50ohm
VSWR:1.20@DC~3GHz
Weatherproof rate:IP67
HS code:85369090
