Product Description
Model: TEL-DINF.12S-RFC
Description:

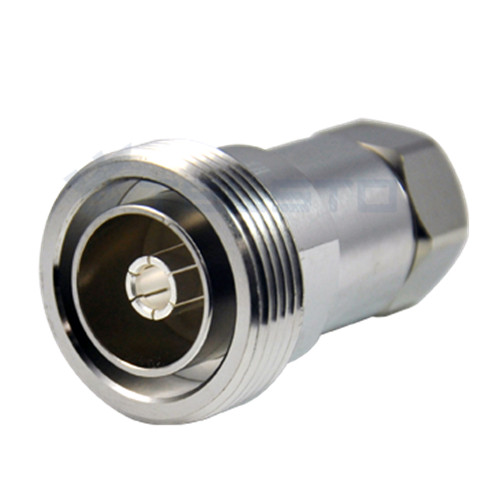

DIN Female connector for 1/2’’ Super flexible RF cable
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | 2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤0.4 mΩ |
| Insertion Loss | ≤0.08dB@3GHz |
| VSWR | ≤[email protected]GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-155 dBc(2×20W) |
| Waterproof | IP67 |
Packaging & Shipping
Packaging Details:The connectors will be packed in one small bag and then put in one box.If you need custom package, we will do as your request.
Delivery time:7~15 days
1.We focus on RF Connector & RF Adapter &Cable Assembly &Antenna.
2.We have a vigorous and creative R&D team with the fullest mastery of the core technology.
We commit ourselves to the development of high performance connector production, and
dedicate ourselves to achieving a leading position in connector innovation and production.
3.Our custom RF cable assemblies are built-in and shipped worldwide
4.RF cable assemblies can be produced with many different connector types and custom lengths
depending on your needs and applications
5.If you require a special RF Connector ,RF Adapter or RF Cable assembly configuration not found here,
you can create your own RF cable assembly configuration by calling our sales department.
Quick Details
Place of Origin:shanghai, China (Mainland)
Brand Name:Telsto
Model Number:TEL-DINF.12S-RFC
Type:DIN 7/16
Application:RF
Gender:female
Frequency:DC~3GHz
Impedance:50 Ohm
Temperature Range:-55'C~+155'C , PE-40'C~+85'C
Contact material:copper
Durability:500 cycles
