Specification
Clip-on Grounding Kit
Clip-on grounding kit are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable's outer conductor.
The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.
Framework Grounding Kit
Framework type grounding kit is compact design for outdoor coaxial cable's (corrugated or braid) grounding. With Tinned copper strip & butyl seal, framework type grounding kit offers Quick installation, good waterproofing & cost efficiency.
Standard Grounding Kit
This type of grounding kit can be used for 1/4 in and 3/8 in corrugated & braided coaxial cable. It was designed according to Commscope (Andrew) GK-242948. Features of this product are installed by the cable ties. It allows it can be used for at least two types of coaxial cable.
Small Universal Grounding Kit
Telsto Small Universal Grounding Kit is designed according to Commscope (Andrew) GK-SUNV. It's small and light, can be used for coaxial cable under 0.6 in.
Bolt-on Grounding Kit
Telsto Bolt-on Grounding Kits are used for 3/8" in corrugated & braided coaxial cable. It requires wrench when installing. That makes it perfect contact area. Moreover, we can make it for different cable.
Universal Grounding Kit
Universal Grounding Kit can be used for all coaxial cable. It consist of a long thick copper strap. You can cut it according to the coaxial cable you will used for.
Quick Details
Place of Origin:China (Mainland)
Brand Name:Telsto
Grounding Strap:05mmT2 copper
Jumper Ring:SUS304
Copper Bolt:T2 copper
Cable Length:6AWG or according to your requirements
Installation Hardwares:SUS304
Touch Resistance:≤10 mΩ
Insulation Resistance:≥ 500MΩ
Resists Trike Electricity:≥70 KA

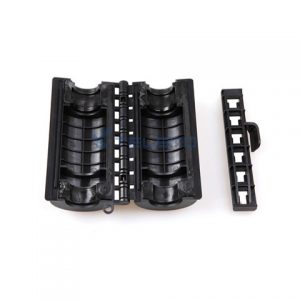

Weatherproofing Kit:Included
