BNC male to female RF Lightning arrester - up to 3GHz
-N Female Bulkhead to N Male connectors
- Protect your antenna and device from dangerous electrical surges.
Telsto series of DC pass RF lightning and surge protection products with an extended frequency operating band from DC to 3000MHz. Male to Female arresters are designed for installation in-line between an antenna and feeder cable. By installing at the tower-top position, this arrester helps protect not only the end user equipment, but the cabling itself.
Electrical Specifications
Frequency Range: DC - 3GHz
Input Impedance: 50Ω
VSWR: <1.5:1 DC-3GHz
Insertion Loss: <0.48dB DC-3GHz
Maximum impluse discharge current:20KA(8/20 μ s)
Mechanical/Environmental
Construction: Ni plated
Connector: N Male to N Female
Temperature: -55 to +85ºC

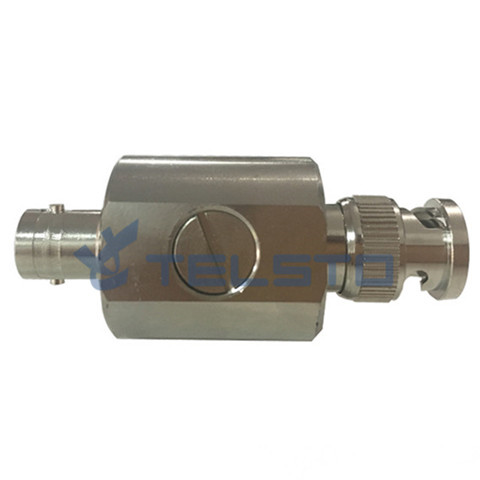

Lightning Protector is a gas discharge tube suppressor featuring wide-band operation up to 3 GHz. This unit features a BNC-Male to BNC-Female Bulkhead connector with a rubber O-ring seal for mounting through an enclosure wall or with the included aluminum mounting bracket.
Due to its low cost and superior RF performance, this unit is ideal for IEEE 802.11b and 802.11g Wireless LAN applications, as well as ISM, MMDS, Cellular, and PCS applications. It is also well suited for protecting sensitive test equipment from electrical surges. Since this protector will pass DC, it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LANS.
Both connector ports of this unit are equally protected. This provides protection no matter which way it is installed. Either port can face the antenna and either port can face the equipment.
The unit's replaceable gas tube element, multi-strike capability, and fast response time make it suitable for a wide range of applications. A ground lug and terminal are supplied directly on the lightning protector housing, which provides superior grounding.
Features:
Reliable Performance from DC ~ 3 GHz
Bi-Directional Protection
Protector will pass DC
Easily Replaced Gas Tube Element, Mounting Bracket Included
Multi-Strike Capability
Applications:
EEE 802.11b and 802.11g Wireless LAN applications
ISM
MMDS
Cellular
PCS applications
