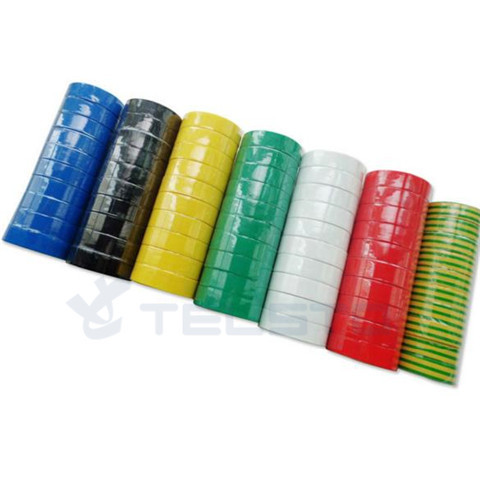

Product Description
| Thickness | 0.13mm, 0.15mm |
| Color | Black, white, blue, red, green, yellow, yellow and green multicolour etc |
| Tensile strength | ≥35N/cm |
| Voltage resistance | 600V |
| Voltage breakdown | ≥3KV/min |
| Elongation | ≥150% |
| Heat resistant | -20 ℃~80 ℃ |
| To backing | 1.0N/cm |
| To seel | 1.2N/cm |
| Feature | Sunlight resistanrt Flame retardant&Lead Free |
Product Application
Advantages
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:PVC tape
Type:Insulation Tape
Material:PVC
Application:High Temperature
Rated Voltage:600V
Tensile Strength:15N/cm
Color:black/white/red/blue/yellow/green/brown/yellow and green
Thickness:0.13mm,0.15mm
Length:10m,20m,33m
Core:38mm
Width:19mm
Elongation at break:150%
Heat resistant:80℃
To break:1.0N/cm
To steel:1.2N/cm
Material properties | PVC |
Category | Flame retardant:New environmentally friendly materials, with insulation, waterproof, fireproof function |
without flame-resistant:A new environmentally friendly materials, with waterproof insulation | |
Product standard number | Thickness: 0.09mm-0.215mm(±0.05 multiple) |
Width: 1.5cm-125cm | |
Length: 5m-40m | |
Outer diameter: 3cm-15cm | |
Feature | Imported glue materials , environmental non-toxic, strong viscosity |
Membrane for the new raw materials, environmental protection, good flatness | |
Fully automatic equipment, saving labor costs | |
Glue type | (1)Low-cost glue, viscosity in general |
(2)Imported material glue, strong viscosity | |
(3)New material imported glue, super viscosity | |
(4)Imported material glue, poor hand viscosity, but the viscosity of the membrane material is better | |
Film types | (1)Ordinary environmentally friendly new insulating film |
(2)High elasticity membrane | |
(3)Pulling length is several times than the general film | |
(4)Easily broken film | |
Uses | (1) Terminal processing of power-cables, wiring and insulation of electrical joints |
(2) Protection, binding, and identification of cables and pipes | |
(3) Protection, repairs, and binding for homes, construction, tying works, and other uses | |
(4) Bundling and repairing automotive wire harnesses | |
(5)Bind greenhouses vegetables and wrap garden branches | |
(6)Connection protection of electronic components and switch components | |
Application Environment | Elongation at break: 150% ~ 220% |
Tensile Strength: 20~30N/10mm | |
Peel Strength: 1.6N/10mm | |
Use temperature: 0~80°C(Have a special high-temperature glue) | |
Use voltage: 600V | |
Our Service | Package: cellophane, shrink, blister card,Single bag packaging ,Packing tray,etc. |
Design Printing:Offer Printing | |
Delivery Time:3-15 days (Depend on your order quantity) after confirm order | |
Payment TermT/T: 30% deposit in advance, 70% balance before delivery. |
