Specifications
1)Material: Galvanized Steel with PVC.
2)Highly resistant to corrosion
3)Long service life

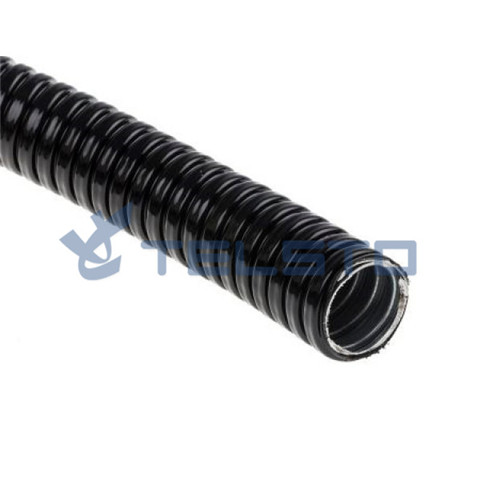

Telsto Flexible Conduit is used where high corrosion resistance and long life for the conduit is required.
Material:
(inner layer)Adopting galvanized steel band with special insulation treatment
(outer layer)Adopting PVC raw material(anti-UV, anti-aging)
Color: Black or Grey.
Working temperature:-10 °c ~+80°c
Long service life
Good mechanical protection
Good bending flexibility
The flexible pipes have extremely good waterproof, insulating and pull resistance.
Telsto conduits are used for mechanical protection of cable and wire in tunnels, hospitals, high-rise office blocks and public buildings, airlines, underground and others.
PVC coated in order to ensure resistance against corrosion.
Telsto Flexible Metal Conduit can be used for following applications:
1)Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoor's exposed locations.
2)Usage:protecting wires and cables and provide insulation and waterproofing performance.
3)How to usd: put the wires and cables through the pipes.
| Part No. | Size | O.D. | Natural curve | Packing | ||
| Black | Gray | (mm) | (inch) | mm | M | |
| TEL-6B | TEL-6G | 6 | 3/16" | 9.00±0.25 | 40 | 200 |
| TEL-8B | TEL-8G | 8 | 1/4" | 11.8±0.30 | 45 | 100 |
| TEL-10B | TEL-10G | 10 | 5/16" | 14.5±0.30 | 55 | 100 |
| TEL-12B | TEL-12G | 12 | 16.5±0.35 | 60 | 100 | |
| TEL-13B | TEL-13G | 13 | 3/8" | 17.5±0.35 | 65 | 100 |
| TEL-15B | TEL-15G | 15 | 20.2±0.35 | 80 | 100 | |
| TEL-16B | TEL-16G | 16 | 1/2" | 21.2±0.35 | 85 | 100 |
| TEL-19B | TEL-19G | 19 | 24.5±0.40 | 95 | 50 | |
| TEL-20B | TEL-20G | 20 | 3/4" | 25.5±0.40 | 100 | 50 |
| TEL-25B | TEL-25G | 25 | 1" | 31.7±0.45 | 120 | 50 |
| TEL-32B | TEL-32G | 32 | 1 1/4" | 39.6±0.50 | 150 | 25 |
| TEL-38B | TEL-38G | 38 | 1 1/2" | 46.6±0.60 | 180 | 25 |
| TEL-51B | TEL-51G | 51 | 2" | 59.5±1.00 | 220 | 20 |
| TEL-64B | TEL-64G | 64 | 2 1/2" | 73.5±1.50 | 310 | 10 |
| TEL-75B | TEL-75G | 75 | 3" | 84.5±2.00 | 350 | 10 |
| TEL-100B | TEL-100G | 100 | 4" | 109.0±3.00 | 410 | 10 |
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Type:Flexible
Material:Galvanized Steel with PVC
COLOR:BLACK.GREY.
