Product Description
Boot Assembly Cushion provides versatility in any application, allowing a single cushion to mount a wide range of cable sizes, reducing material and installation costs. These cushions are constructed of UV-resistant EPDM rubber, allowing for proper functionality in extreme temperature and harsh environmental conditions. Barrel cushions are available in multiple sizes to accommodate industry demands for fiber, power, elliptical and coaxial cable requirements. The unique design allows the cushion to be individually installed utilizing Butterfly Hangers or stacked with Stackable Hangers and Mini Cable Blocks.
*Application: Clamp Port Solutions
*Size: Versions for coaxial cable
*Design: Compression fit round cushions
*Feature: Dependable seal
*Material: EPDM rubber
Application:
Introduction:
Each Assembly cable entry boot include :
1. A outer boot. (EPDM Rubber)
2. A selectable inner cushion insert. (EPDM Rubber)
3. Two hose clamp. (Stainless steel)
The 4" cable entry boot, is made of EPDM rubber. The material is unaffected by ozone, sunlight, aging, or temperature extremes. It is to be intalled to the 4" entry panel, and allow the various coaxial cable go into the shelter throgh them.
One piece design for easy installation and superior water sealing properties.
| Application: | Entry port solutions |  | |
| Size: | Versions for 1/2" to 2-1/4" coaxial cable | ||
| Design | Compression boot kit for aluminumentry panels | ||
| Feature: | One-piece design simplifies installation | ||
| Mounts to | 4" (101.6 mm) entry panels | ||
| Material: | EPDM rubber | ||
| Includes: | Boot, cushion, two hose clamps | ||
Full sizes of cushion inserts:
| Product | Description | Part No. |

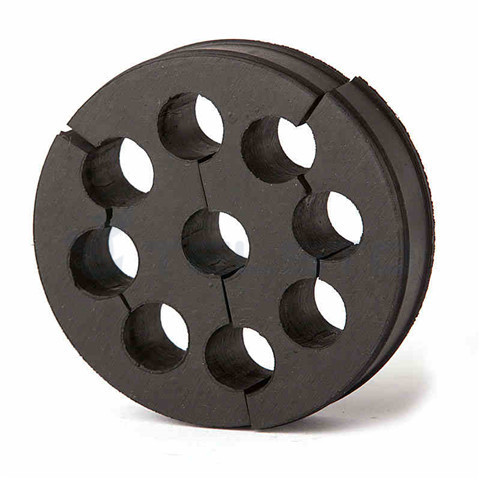

| Boot Assembly Cushion | Boot Assembly Cushion with 9 holes for 3/8" coaxial cable | TEL-BAC-9X3/8'' |
| Boot Assembly Cushion with 4 holes for 1/2" coaxial cable | TEL-BAC-4X1/2'' | |
| Boot Assembly Cushion with 4 holes for 1/2"Superflex coaxial cable | TEL-BAC-4X1/2''S | |
| Boot Assembly Cushion with 3 holes for 7/8" coaxial cable | TEL-BAC-3X7/8'' | |
| Boot Assembly Cushion with 3 holes for 1-1/4"coaxial cable | TEL-BAC-3X1-1/4'' | |
| Boot Assembly Cushion with 1 hole for 1-1/4"coaxial cable | TEL-BAC-1X1-1/4'' | |
| Boot Assembly Cushion with 1 hole for 1-5/8"coaxial cable | TEL-BAC-1X1-5/8'' | |
| Boot Assembly Cushion with 2 hole for 3/8"coaxial cable | TEL-BAC-2X3/8'' | |
| Boot Assembly Cushion with 2 holes for EW36 coaxial cable | TEL-BAC-2XEW36 |
Quick Details
Place of Origin: China (Mainland)
Brand Name: Telsto
Size: Versions for 1/2" to 2-1/4" coaxial cable
Mounts to: 4" Entry Panels
Include: Boot, cushion, two hose clamps
Material: EPDM Rubber
Design: Compression boot kit for aluminumentry panels
Feature: One-piece design simplifies installation
