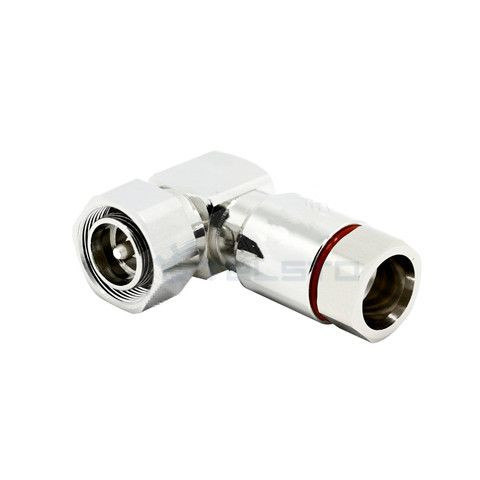

4.3/10 MINI DIN Male Right Angle RF Connector For 1/2" Flexible Cable
Product Description
Features:
4.3/10 MINI DIN Male Right Angle For 1/2" Cable
Model: TEL-4310MA.12-RFC
Frequency: DC-6GHz
V.S.W.R: ≤ 1.10
PIM: < -155dBc@2X43dBm
Shell Plating: SY or Silver
Inner plating: Silver or Gold plate
Impedance: 50 Ω
Match Cable: 1/2" Standard Feeder
Temperature: -40°C- +85°C
Waterproof: IP67
Durability: 500 Cycles
| Material and Plating | |
| Center contact | Brass / Silver Plating |
| Insulator | PTFE |
| Body & Outer Conductor | Brass / alloy plated with tri-alloy |
| Gasket | Silicon Rubber |
| Electrical Characteristics | |
| Characteristics Impedance | 50 Ohm |
| Frequency Range | DC~3 GHz |
| Insulation Resistance | ≥5000MΩ |
| Dielectric Strength | ≥2500 V rms |
| Center contact resistance | ≤1.0 mΩ |
| Outer contact resistance | ≤1.0 mΩ |
| Insertion Loss | ≤0.1dB@3GHz |
| VSWR | ≤[email protected]GHz |
| Temperature range | -40~85℃ |
| PIM dBc(2×20W) | ≤-155 dBc(2×20W) |
| Waterproof | IP67 |
TYPE:
1. N-Male / N-Male Adapter
2. SMA-Female / F-Male Adapter
3. SMA-Female / SMA-Male Adapter
4. N-Male / SMA-Female Adapter
5. 50Ω and 70 Ω are available and intermateable
Quick Details
Place of Origin:Shanghai, China (Mainland)
Brand Name:Telsto
Model Number:DIN Male Right Angle
Type:DIN
Application:RF
Gender:Other
Product Name:4.3/10 DIN Male Right Angle
Material:Brass
Plating:White Bronze (Tri-Metal)
Frequency Range:DC-6GHz
Impedance:50ohm
PIM:<-155dBc@2X43dBm
VSWR:<1.12
Waterproof:IP67
Match Cable:1/2" Flexible Cable
