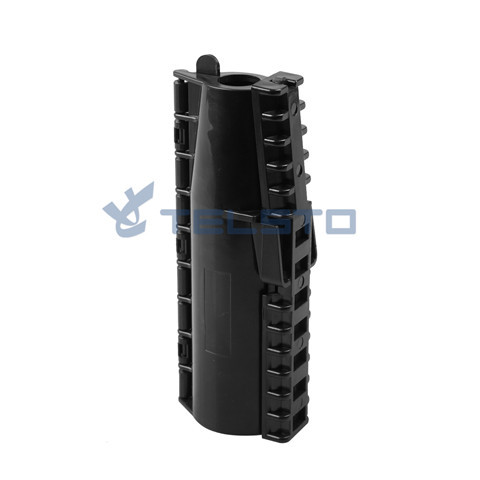

SLIM Design Weatherproofing Enclosures
Gel Seal Closure for 1/2"jumper to 4.3-10 connector
Telsto gel seal weather proofing clam shell is a new kind of weatherproofing enclosure which contains a highly compliant sealing gel that conforms to the entire connection rather than a perimeter seal, leading to a highly reliable weather protection performance. In addition, the enclosure retains all the advantages of earlier closures – quick and easy to install, no tools required, and reusable-but the SLIM design better suited for crowded RF connection points of new emerging cell sites with multiple in, multiple out(MIMO) or multiband antenna configurations.
Temperature Range, -40 ℃~+70 ℃
Sealing Class, IP68
Colors, Black or Grey
Shell Material: ABS+PC
Coax Sizes Supported
Antenna/RRU Connectors
| Gel Seal Closure | |
| Model | TEL-GE-1/2-J- connector 4.3-10 |
| Function | Gel Seal Closure for 1/2"jumper to 4.3-10 connector |
| Material | PC+SEBS |
| Size | L120mm,W48mm,H30mm |
| Input | 1/2"jumper(13-17mm) |
| Output | connector 4.3-10 |
| Net Weight | 76g |
| Life/duration | More than 10 years |
| Corrosion and ultraviolet resistance | H2S,passed ultraviolet test |
| Ice-snow resistance | up to 100mm,no water leakage ,no shape change |
| Waterproof level | IP68 |
| Fireproof level | HB |
| Rainstorm resistance | 100E 150mm/h |
