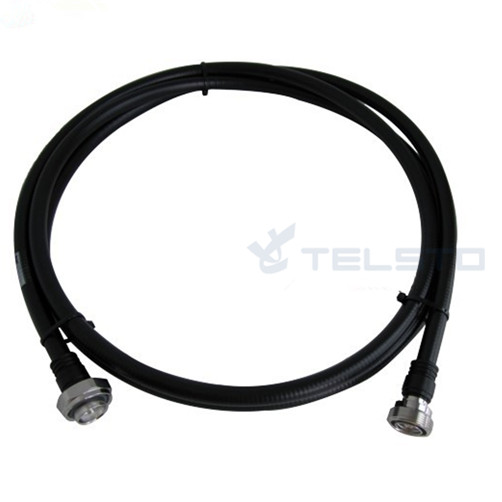

1/2" RF Cable Assemblies / Assembly
Applicable for connecting feeder cables with 8TS equipment and antenna, unnecessary of additional waterproof measures, such as waterproof gel or tape, meets waterproof standard IP68.
Standard lengths: 0.5m, 1m, 1.5m, 2m, 3m, customer special requiremnts on jumper length could be satisfied.
Characteristics & Applications
| Electrical Spec. | |
| Vswr | ≤ 1.15 (800MHz-3GHz) |
| Dielectric withstanding vlotage | ≥2500V |
| Dielectric resistance | ≥5000MΩ(500V DC) |
| Pim3 | ≤ -155dBc@2 x 20W |
| Operating temperature | - 55oC ~ + 85oC |
| Insert loss | It depends on leghth of cable |
| Weatherproofing standard | IP68 |
| Cable length | Customized |
| Jacket | Injection molding |
| Connector applicable | N /DIN Type |
| Structure and performance parameters | ||||
| 1/2" RF Cable | RF Connector | |||
| Material | Inner coductor | Copper clad aluminum wire (Φ4.8mm) | Inner conductor | Brass, tin phosphorus bronze, tinnedt, hickness≥3μm |
| Dielectri material | Physical foam polyethylene(Φ12.3mm) | Dielectri material | PTFE | |
| Outer conductor | Corrugated copper tube (Φ13.8mm) | Outer conductor | Brass, tri-alloy plated, thinkness≥2μm | |
| Jacket | PE/PVC( Φ15.7mm) | Nut | Brass, ni plated, thickness ≥3m | |
| Sealing ring | Silicone rubber | |||
| Electrical and Mechanical Spec. | Characteristic impedance | 50Ω | Characteristic impedance | 50Ω |
| Vswr | ≤ 1.15(DC-3GHz) | Vswr | ≤ 1.15(DC-3GHz) | |
| Standard capacity | 75.8 pF/m | Frenquency | DC-3GHz | |
| Velocity | 88% | Dielectric withstanding voltage | ≥4000V | |
| Attenuation | ≥120dB | Contact resistance | Inner conducter ≤ 5.0mΩ Outer conducter≤ 2.5mΩ | |
| Insulation resistance | ≥5000MΩ | Dielectric resistance | ≥5000MΩ, 500V DC | |
| Peak voltage | 1.6KV | Durability | ≥500 | |
| Peak Power | 40KW | Pims | ≤ -155dBc@2x20W | |
Basic Info
Model NO.: 1/2" RF Cable
Wire Core Material: Bare Copper Wire
Certification: CE, ISO, RoHS, CCC, UL, VDE
Model: 1/2"
Brand: OEM
Color: Black
Inner Conductor: CCA
Weatherproof Standard: IP68
Jacket: Injection Molding
Connector Applicable: N/DIN Type
Trademark:Telsto
Transport Package: Standard Export Package
Specification: CCA
Origin: Shanghai
HS Code: 8544200000
